Metal Defender Walk Through Metal Detector Wall Panel (2 Pcs)

Regular price $3,599.99 Sale price $3,987.00
Save 10%

In stock

Got Questions? ☎ (888) 891-9055 / Mon-Fri 9am-6pm EST

Description

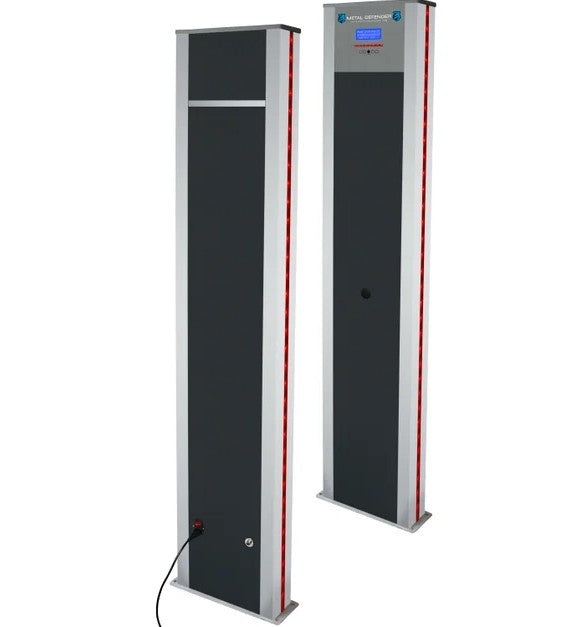

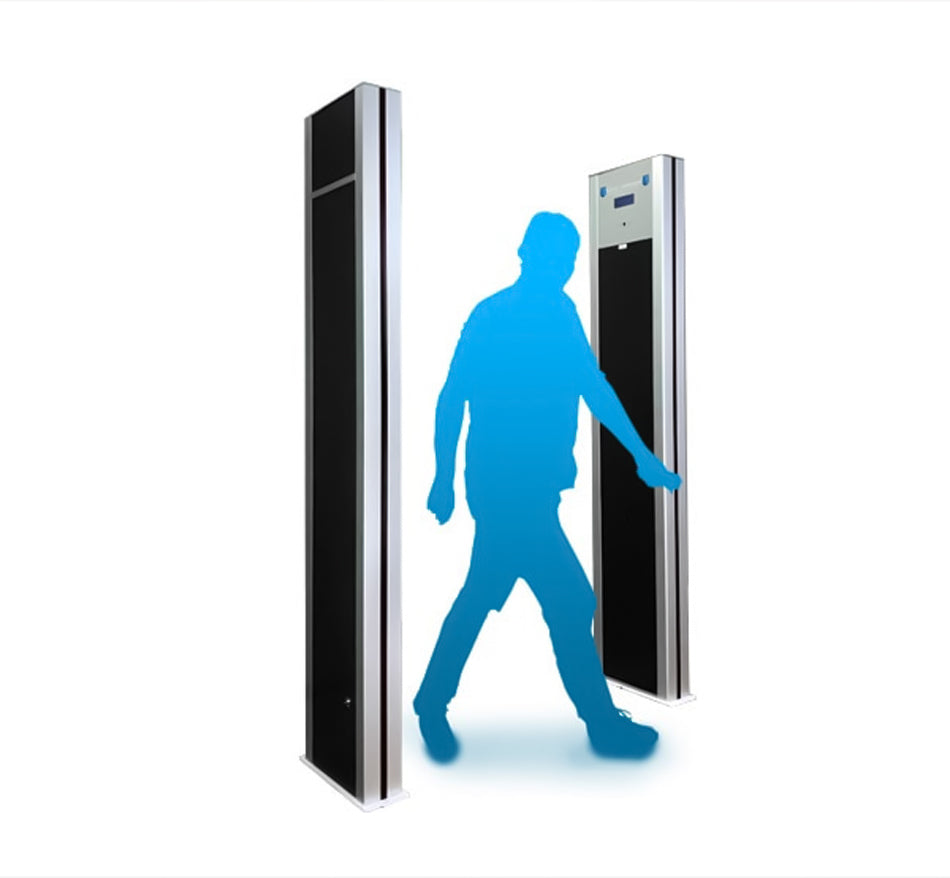

The Patent Pending Metal Defender Walk Through Metal Detector utilizes cutting-edge technology, featuring only two self-supporting sides and no overhead module. Unlike other detectors, Metal Defender has integrated the sensitivity settings into each leg, allowing for precise control over detectable objects in a range of sensitivities. The legs can also be installed at a wider width than any other detector currently available on the market, thanks to the absence of a head module. This advanced design allows for the detection of small objects, even as small as a quarter. (It comes with 2 panels)

*Patent# US D867,192 S

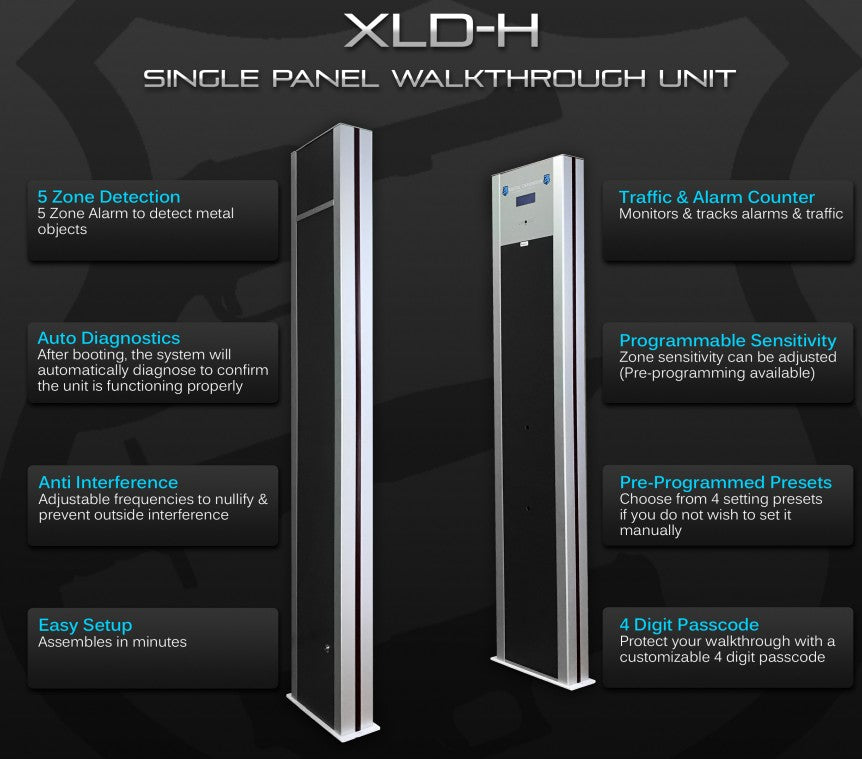

KEY FEATURES

  • 10 unique zones for pinpoint detection.
  • Simple Readable Display Panel.
  • Automatic self calibration & Tuning.
  • Max width of 36 inches this far exceeds the ADA (American Disabilities Act.)
  • Warranty 2-Year standard warranty Limited Parts/Labor.
  • FREE - Programming, Shipping and Security Hand Wand.


APPLICATIONS

Metal Defender’s XLD-H Walk-through Metal Detector provides pinpoint accuracy and discrimination features. This detector is effective in all environments including but not limited to airports, government buildings, correctional facilities, and sports venues. While being cost effective it also provides the same security that professionals worldwide receive from other brands. With its adjustable width, there is no walk-through on the market that can provide the same degree of flexibility.

More Details

With a max width of 36 inches this far exceeds the ADA (American Disabilities Act) requirements for a width of 32 inches.  This also allows a greater deal of utility that other metal detectors can’t compete with such as the ability to transport objects through the inside tunnel including: Gurneys’ for hospitals, Media equipment for press, mechanical equipment for engineers, extra-wide wheelchairs and so much more do to the adjustable width of the passageway. With its extremely easy to follow installation guidelines from time you receive the product and time you set up it will only take 15 minutes.

Advanced Features

-Max width of 36 inches this far exceeds the ADA (American Disabilities Act) requirements for a width of 32 inches.

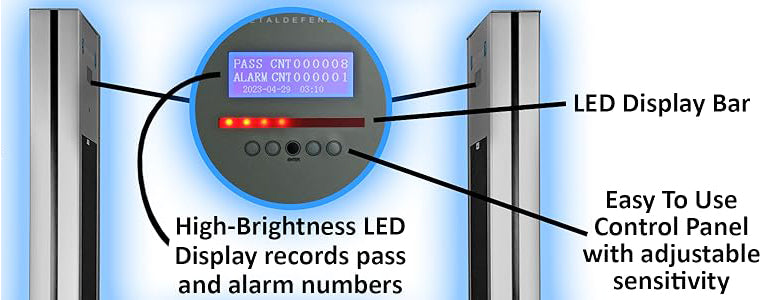

-10 independent zones available to choose, Dual High-Brightness Red LED Display
-Statistics: Record the pass and alarm numbers
-Can change detection zones according customers’ demands
-4 sensitivity presets from which to choose from
-No harm to human body with peacemakers, pregnant women and digital equipment.
-Dual detection: with transmitters and receivers in each panel. Scanning from both sides the XLD-H provides superior detection, uniformity and performance.

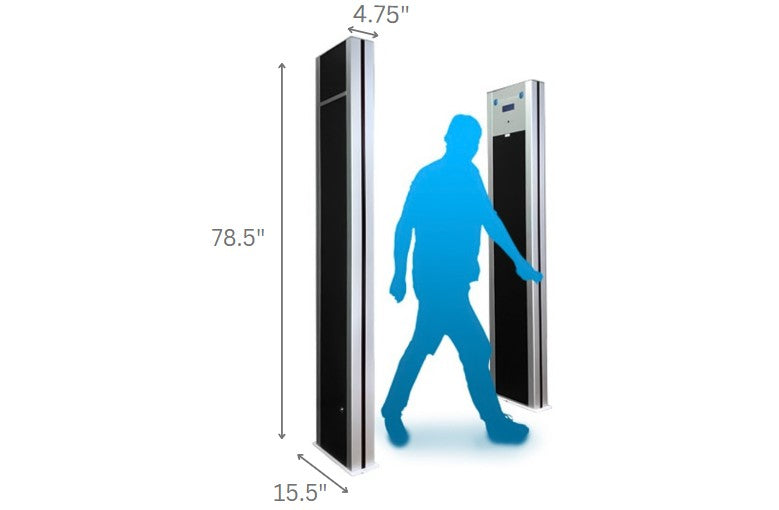

Dimensions & Weight

Product Dimensions (Per Leg) 4.75"W x 78.5"H x 15.5"D

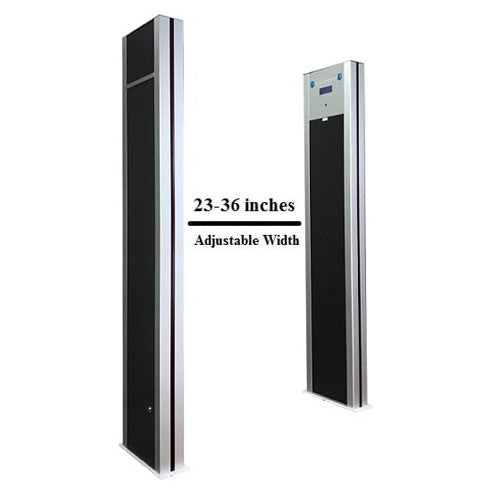

Passageway Interior Size 23"- 48"W x 68"H x 15.5"D
Weight 76lbs per leg



Specifications
Standard Programs 4 “Occasions” for pre-programming the unit
Sensitivity 10 Adjustable Zones with sensitivity levels from 0–255
Zone Indications 10 Zones

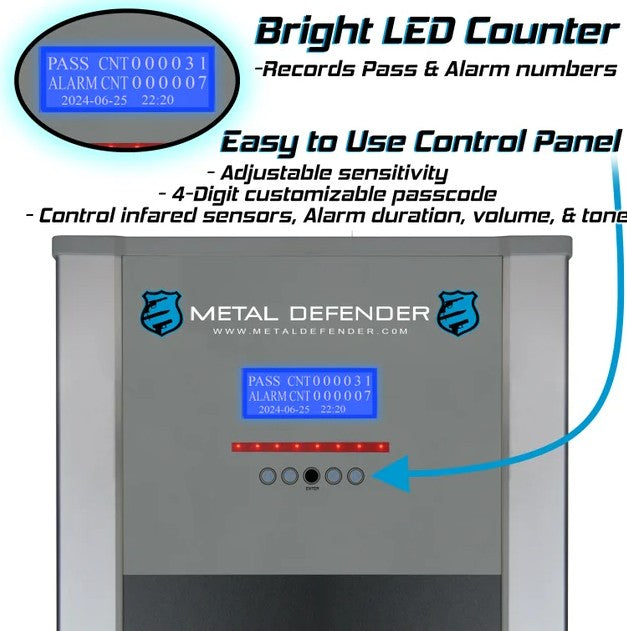

Control Panel Per Leg Each leg has customizable parameters
Tamper-Proof Settings 4-digit customizable passcode
Self Diagnostics Unit self-diagnoses upon startup/reset
Warranty 24-month standard warranty (Limited Parts/Labor)
Product Dimensions Legs: 78½" (H) × 15½" (D) × 4¾" (D)
Passage: 68" (H) × 15½" (D) × 23–36" (W) Adjustable
Shipping Weight 2 pieces per unit – Legs: 80 lbs each
Temperatures Operating: -20°C to 60°C
Storing: -20°C to 50°C
Power Power Supply: AC110V/60Hz
Weight: 35 kg
Consumption: <35W
Work Environment: -20°C to +45°C
Weatherproofing IP20 – Water/Dust resistant
