UIG 3D Ground Scanner-GER Detect
SKU: GER-UIG
Regular price
$2,930.00
Sale price
$3,999.00
Save 27%
In stock
Got Questions? ☎ (888) 891-9055 / Mon-Fri 9am-6pm EST
Description

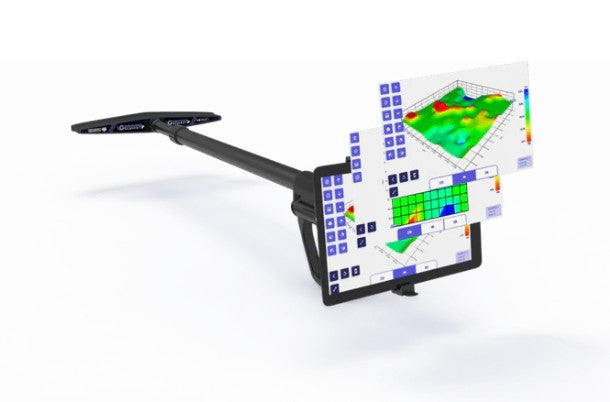

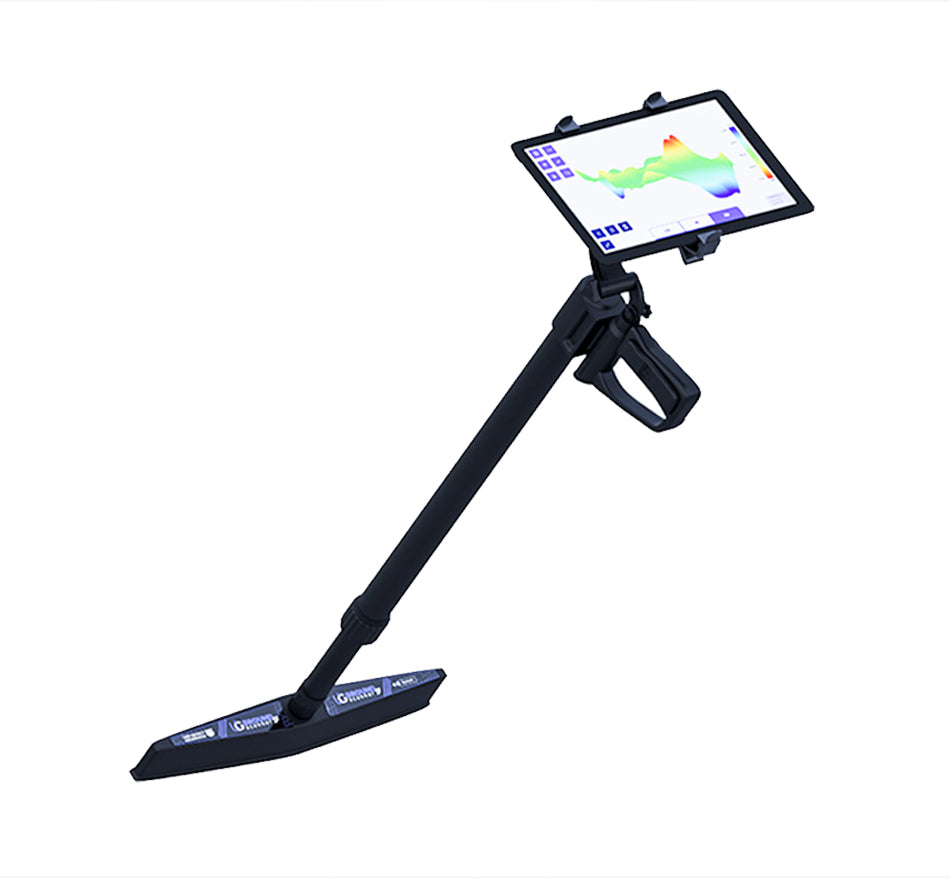

GER Detect UIG 3D Ground Scanner – Professional Underground Detection System

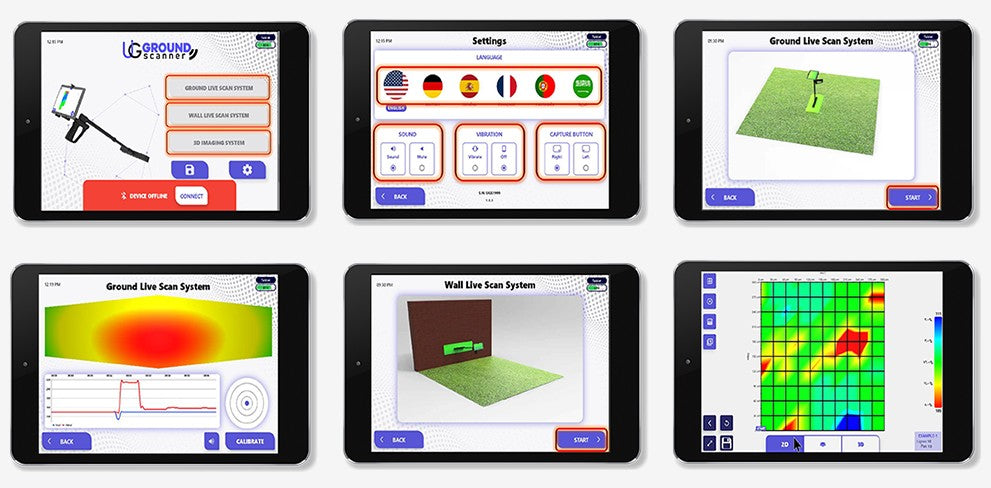

The GER Detect UIG 3D Ground Scanner is a powerful multi-system device designed for serious prospectors and professionals. Using advanced 3D imaging technology, it allows users to detect gold, buried treasures, and underground structures with high accuracy and efficiency. (Depth: 30 meters/98.43 ft depending on the size of the buried objective. Battery life up to 10 hours.)
It holds ISO 9001 certification for quality and CE certification, ensuring compliance with European safety standards.

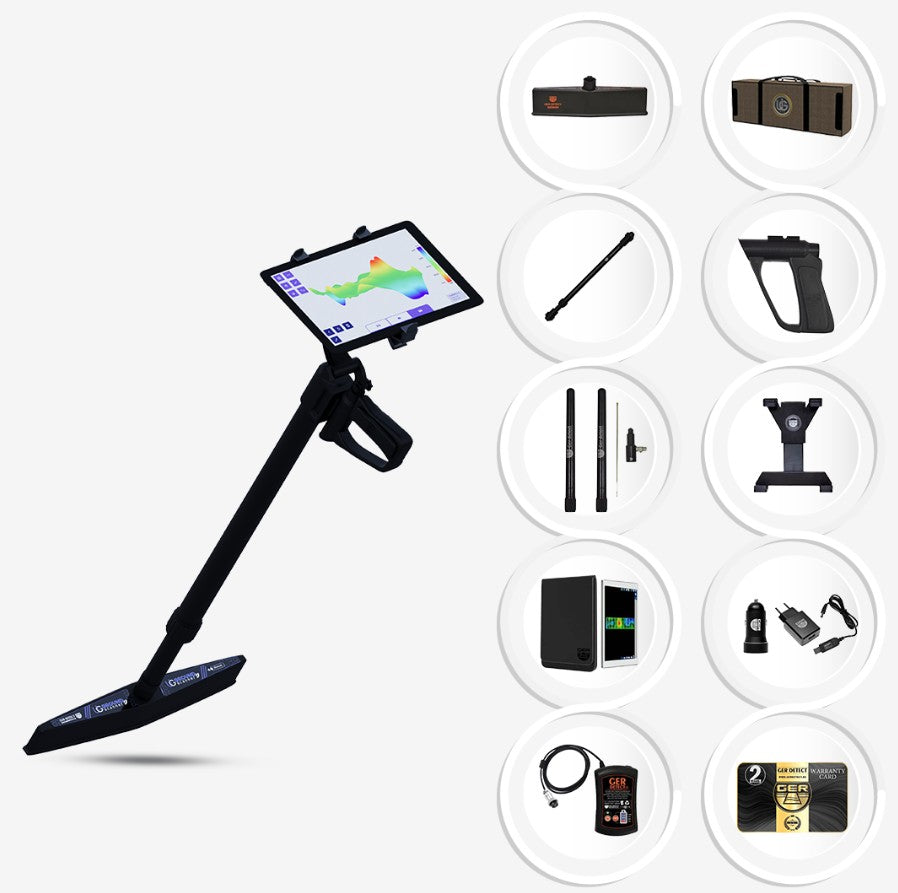

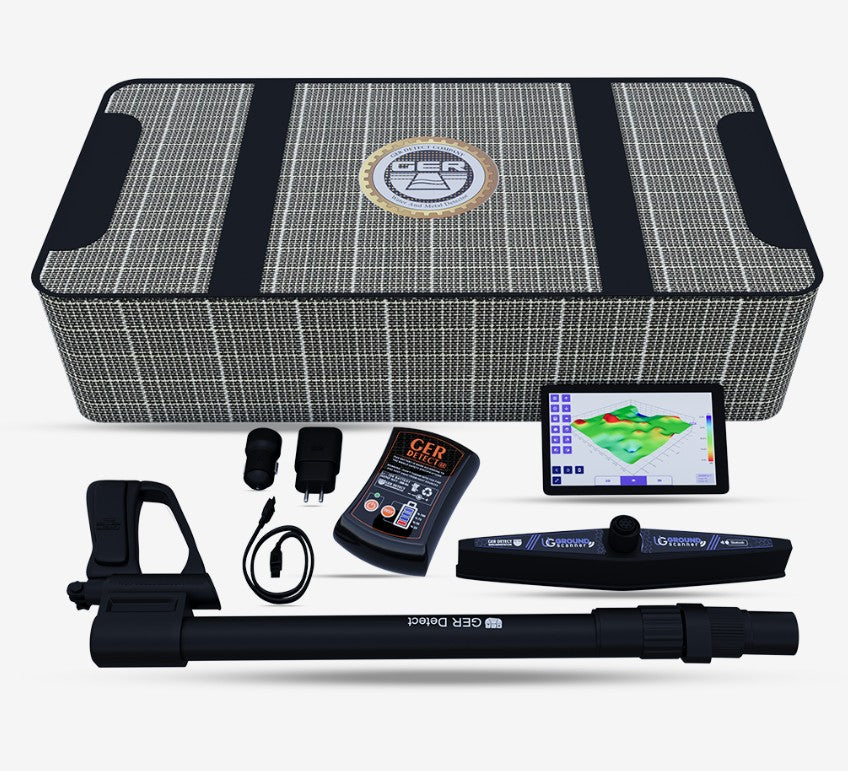

Includes:
- Tablet.
- Tablet’s stand.
- Device’s handle.
- Imaging sensor.
- The arm of the imaging sensor.
- 2500 mAh battery.

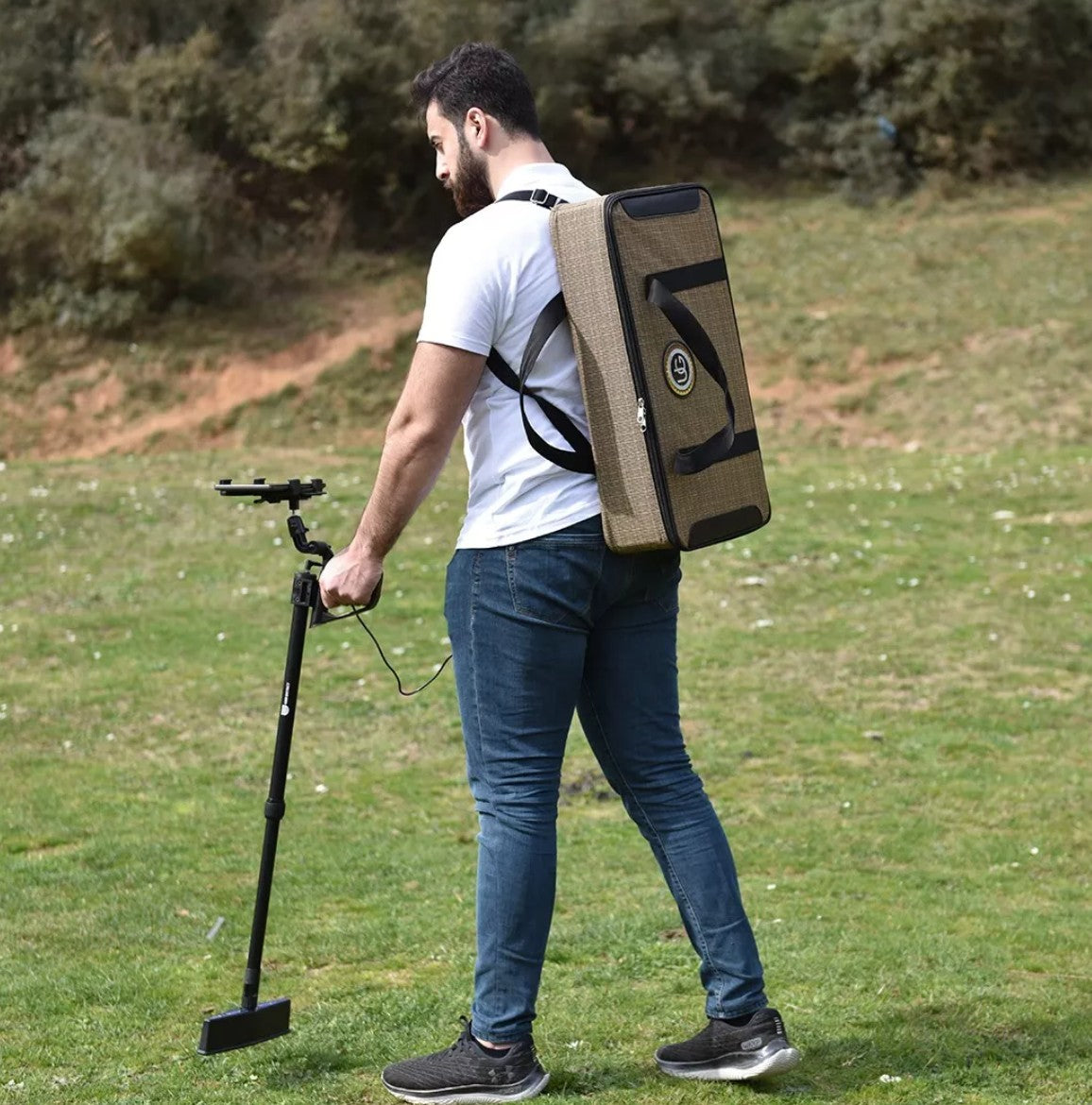

- A Carrying Bag for the device protection.
- Battery charger.
- Car charger.
- 2-Year Warranty.
Technical Specifications

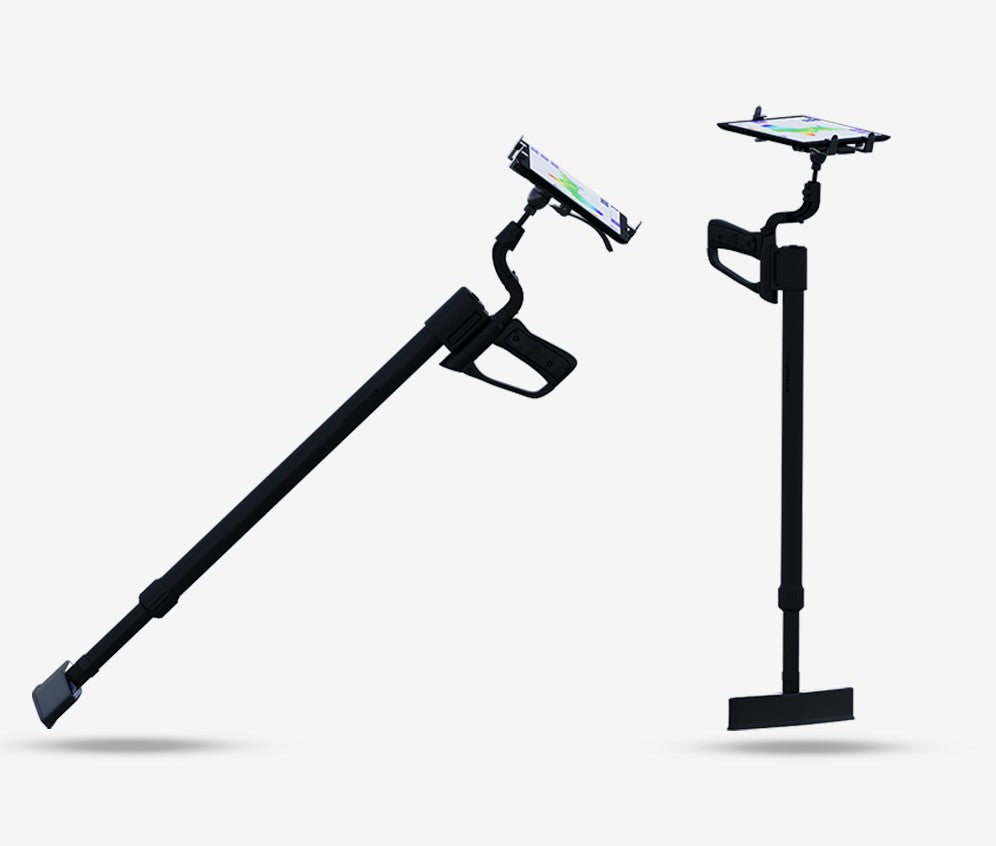

| Device without sensor (Closed) 575 mm | |
| Device with sensor (Closed) 600 mm | |
| Device with sensor (opened) 880 mm | |
| Bluetooth | 2.4 GHz Radio |
| Data processing speed | 72 MHz |
| Operating Temperature Range | 0 C° to 70 C° |
| Operating Humidity Range | Up to 95 % non-condensing |
| Storage Temperature Range | – 20C° to 70C° |
| Storage Humidity Range | Up to 98 % Relative Humidity |
| Operating Time (27 Wh Battery) |
10 Hours |
| Waterproof Rating – Detector | Not waterproof (weatherproof only) |
| BT144 Battery Technical Specifications | |
| Type | Rechargeable Battery – External Battery |
| Output Voltage | Li-ion 10.8 VDC |
| Capacity | Li-ion 27 Wh |
| Run Time | 10 Hours |
| Battery Operating Temperature | 0 C° to 50 C° |
| Battery Storage Temperature | – 5C° to 70C° |
| Battery Charger Technical Specifications | |
| Operating Temperature | 0 C° to 50 C° |
| Storage Temperature | – 30 C° to 80 C° |
| Input Voltage | 90 → 250 VAC 50→60 Hz |
| USB Output Current | 5 VDC / 2100 mA |
| Other Technical Specifications | |
| Total weight | 3900 g |
| Device weight | 1100 g |
| Battery weight | 330 g |
| Bag weight (empty) | 2230 g |
| Bag dimensions | 635 mm x 335 mm x 145 mm |
